Mini NOD
$ 132.854,00
The MININOD is a Power Supply for 6 pedals, regulated and filtered to maintain a minimal and controlled level of noise.
Its small size ensures space on any pedalboard for more pedals. Easy to transport, the MINI NOD features a status indicator LED and is accompanied by a small universal transformer of 110/220v (works worldwide) and 6 cables with 2.1mm hollow plug connectors, straight and angled of different lengths, with negative polarity to the center. (Optional polarity and/or connector change, contact the seller and/or manufacturer).
As if this weren’t enough, the MINI NOD can power Line 6 Stompboxes (DL4, MM4, DM4, and FM4) among other pedals without any problem. With the MINI NOD Power Supply, you forget about carrying an exclusive power supply for the DL4 and/or any other Stompbox Modeler…
Note: To power any Stompbox Modeler, a special cable is necessary, contact the seller and/or manufacturer to acquire it.
Description
Connection

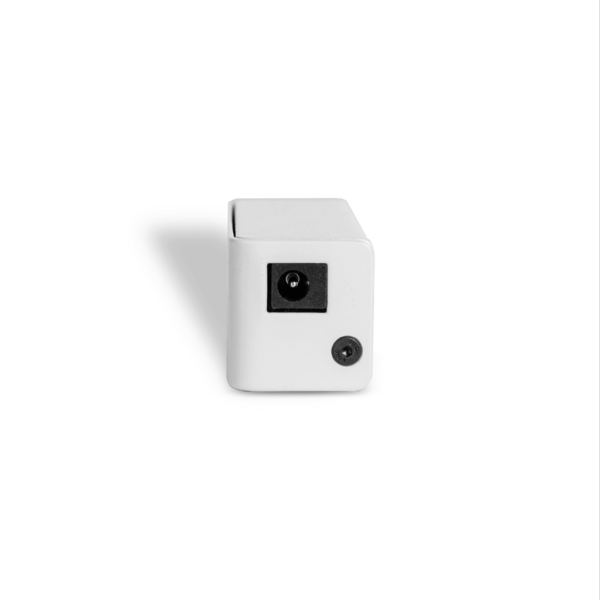

Simply connect the transformer to the connector on the right side of the Nodriza XS and then connect the power cables to the outputs, from the Nodriza XS to your pedals, after this connect the transformer to the power outlet.
Specifications
Voltage: 9 volts DC on each output. Current: 1000mA, enough to power more than 6 pedals. Protection against short circuits and overheating: Thanks to the technology of its voltage regulator, in the event of a short circuit or overheating, the MINI NOD automatically shuts off, protecting everything it is powering without the need to replace fuses, once the fault is detected and solved, the MINI NOD turns back on instantly.
Dimensions: 80 x 30 x 29mm
Weight: 135g
Manufacturer’s Comment: It has always seemed to me a pity to see a pedalboard with a power strip full of transformers or with a large power supply taking up a space that could easily be used for more pedals… although the design of the classic Nodriza was already quite small in size, the intention with the MINI NOD was the same, to make it as small as possible to occupy minimal space on a pedalboard, and at the same time perfectly fulfill the function of powering and protecting the pedals.
